Pulse Simulator and Counter
Fully Commission Converters and Dataloggers without turning on the gas
Simulate the presence of a spinning meter
The device is designed to simulate the presence of a spinning meter and monitor the number of LF events triggered by meters, converters, chatterboxes, and barriers.
Three predefined modes supply a steady stream of pulses to the converter helping to verify the setup without turning on the gas.

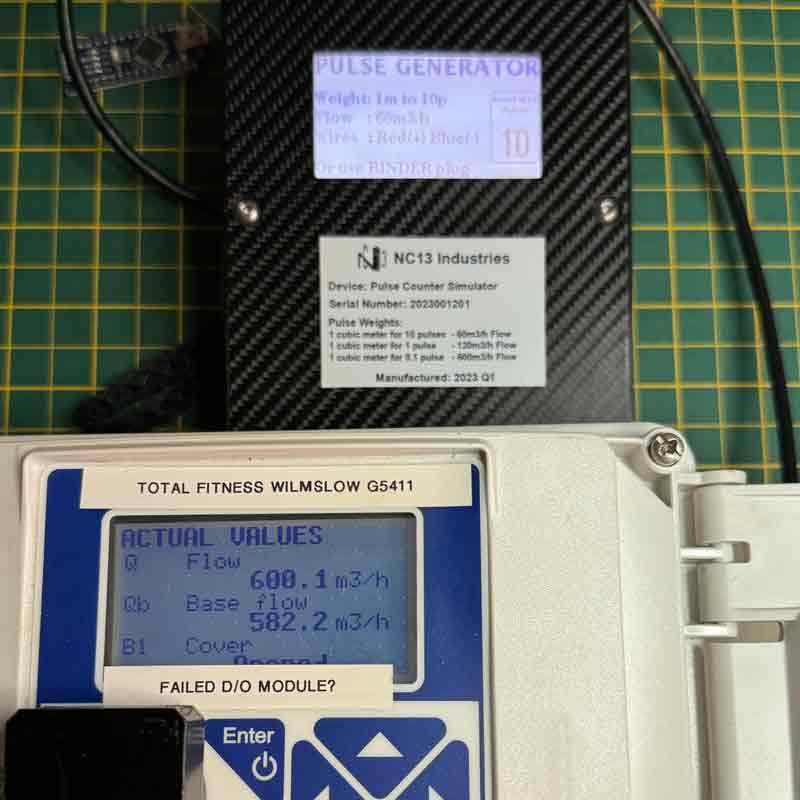

When correctly set up, the Converter will display the Flow within 1% of the Target Flow and the Primary Volume will increment with the correct amount of units. The Base Flow and the Base Volume will be calculated based on the conversion factor.
Key Features
- Reliable Pulse Generation: Provides consistent pulse streams for testing and commissioning gas metering equipment
- Three Operation Modes: Versatile testing scenarios for different validation requirements
- Professional Grade: 3D printed PLA+ construction for durability in field conditions
- Compact Design: Lightweight 600g unit for easy transport and setup
- Precision Testing: Enables flow verification within 1% accuracy for setup validation
- Gas-Free Commissioning: Test converter functionality without requiring actual gas flow
Applications
The NC13 Pulse Simulator is essential for:

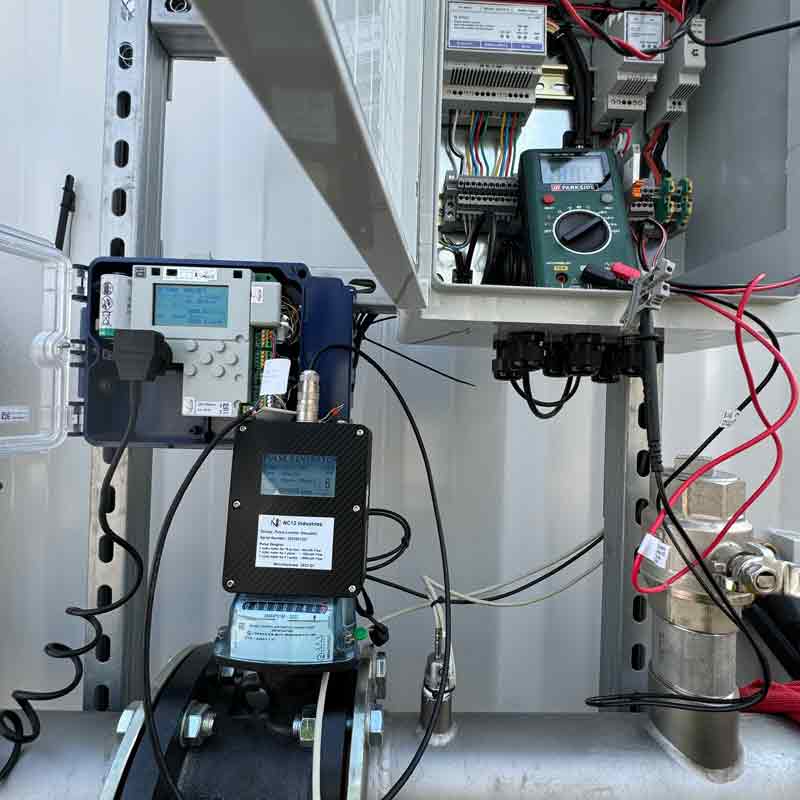

- Commissioning: Validate gas metering setups without gas flow
- Testing: Verify converter and measurement system functionality
- Calibration: Ensure accurate flow calculations and volume increments
- Troubleshooting: Isolate issues in gas measurement systems
- Field Service: Portable solution for on-site testing and verification
Pulse Simulator Function
Three modes, specifically programmed to simulate meters with a pulse weight of:
- 1 pulse per 1 cubic meter
- 1 pulse per 10 cubic meters
- 10 pulses per 1 cubic meter
Three of the most common meter pulses are simulated within 1% accuracy backed by calibration certificates.

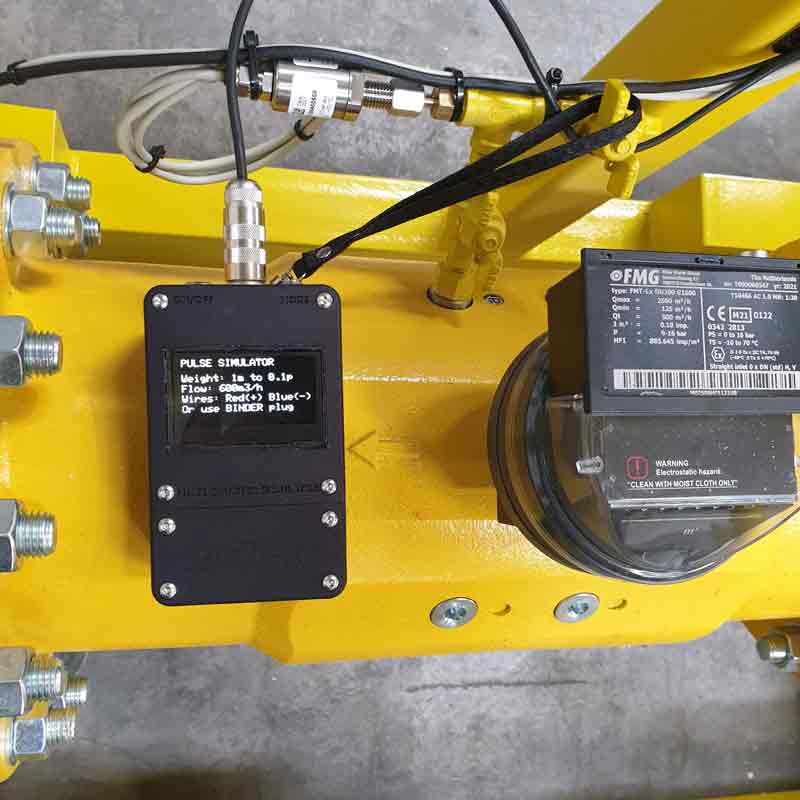

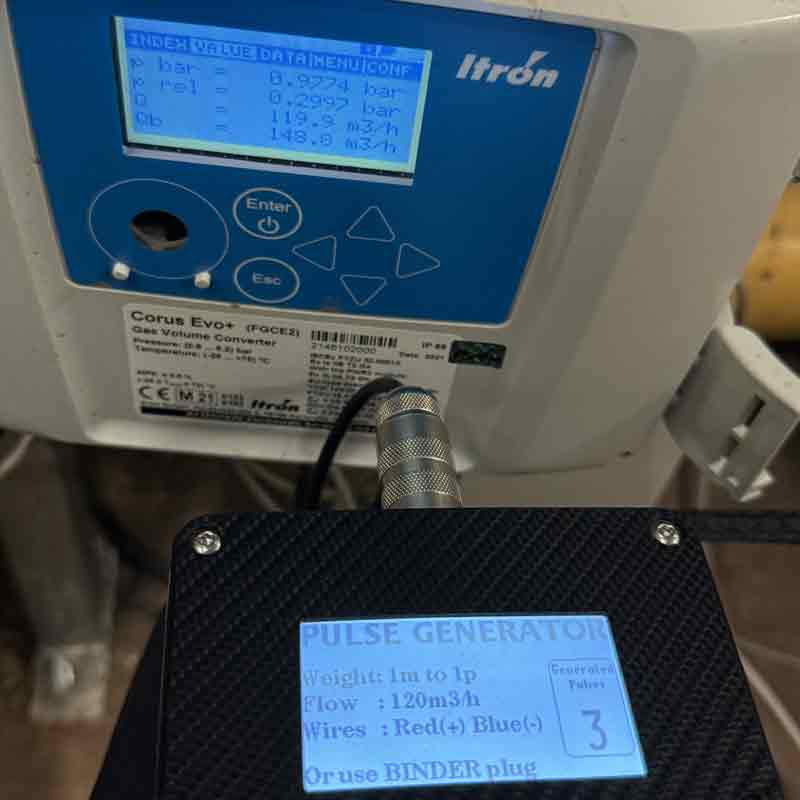

The device displays the pulse weight and the flow that will be generated.
Pulse Counter Function
Pulse Counter is the default function available once the device started.
Used as a pulse counter, the device will interface with barriers, chatterboxes and relays to capture the pulse output for visual confirmation.
- 1st line of text on the screen describes the operating mode
- 2nd line offers a visual reminder of the polarity of the cables used
- 3rd line of text shows the number of pulses counted
Technical Specifications
Weight
600 g
Dimensions
30 x 30 x 10 cm
Primary Function
Pulse Simulator
Secondary Function
Pulse Counter
Application
Natural Gas Engineering tools
Construction
3D Printed PLA+
Applications
The Pulse Simulator and Counter is ideal for:
- Commissioning converters and dataloggers without gas flow
- Testing and verifying meter pulse outputs
- Calibrating monitoring systems and SCADA interfaces
- Training and demonstration purposes
- Troubleshooting pulse-related issues
- Quality assurance testing of gas metering installations
Support & Services
Product Support
Comprehensive user documentation and technical support for optimal device utilization.
Calibration Certificate

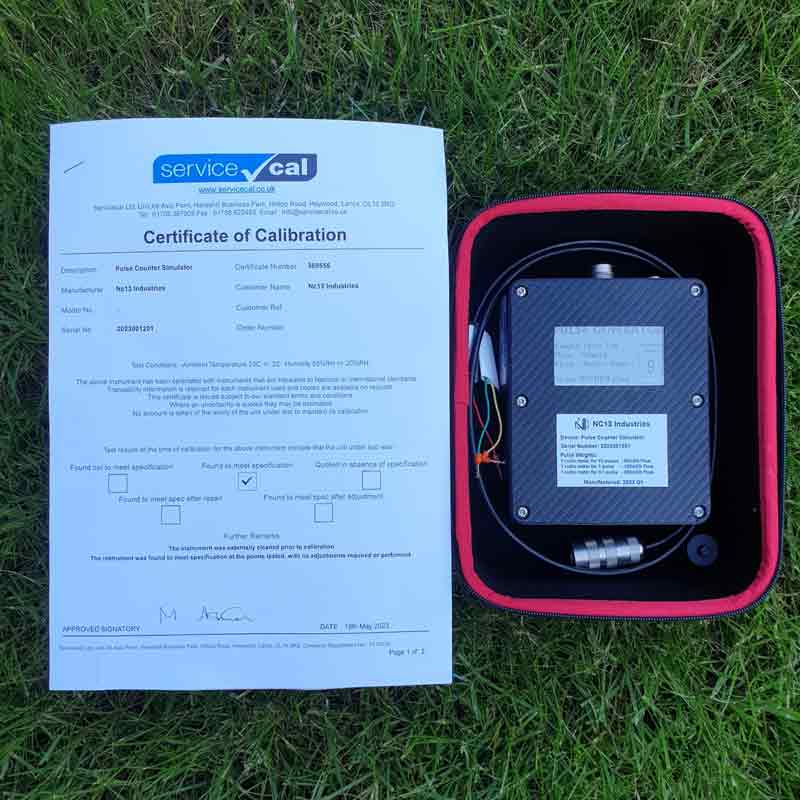

Each device comes with calibration certificates ensuring 1% accuracy specification.
Technical Training
Training available on proper usage techniques and best practices for gas meter commissioning.
Warranty
Standard manufacturer warranty covering materials and workmanship defects.
Customer Reviews
Useful piece of kit. Helps you make sure that the converter is properly setup.
You just select the appropriate settings and it does the rest.
